The LectricAir® SAFPAC controls are air actuated electrical switch systems that promote intrinsically safe control of electrical devices. The SAFPAC control system is composed of three basic components: The controller, the air transmitter, and an interconnecting air hose. The SAFPAC control system is available with up to four female outlet receptacles with plug in the wall features or the control system can be field wire able. The SAFPAC controller can be used with a variety of Tecmark's pressure transmitter and tubing combinations. When the transmitter is depressed, air in the transmitter is displaced through flexible air tubing to an air switch. The air switch completes or interrupts the electrical circuit, turning on or off the electrical device, which has been plugged into the controller's grounded receptacle.
Typical Applications include any electrical device requiring on/off switching, including garbage disposers, drill presses, pumps, lights, farm equipment, industrial machines, lab devices, and more.
| SERIES | KEY FEATURES | ENCLOSURE CONSTRUCTION | RATINGS AND SPECIFICATIONS |
|---|---|---|---|
| * Direct Plug or Power Cord * Single outlet up to 4 outlet configutations * Time delay, switched or fulltime power | Thermal Plastic Housing Noryl N190 | Direct Plug up to 15 amps @ 120 VAC Power Cord up to 20 amps @ 120 VAC Approvals - UL Listed Indoor use only | |

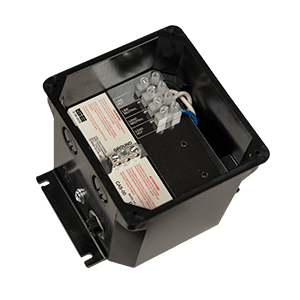

CA / CP100 | * Field wireable * Easy access terminal block * Time delay or switched * CP designates a completed control package that includes air transmitter and tubing | Thermal Plastic Housing Noryl N190 * 5 x 5 water tight * 4 x 4 general purpose | Up to 25 amps @ 120 / 240 VAC Approvals - UL Listed |

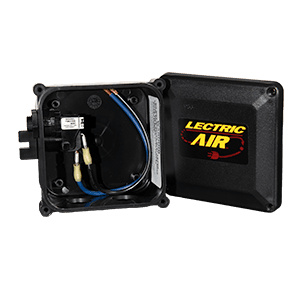

BA / CP700 | * Field Wireable * Open wire leads * Time delay or switched * CP designates a completed control package that includes air transmitter and tubing | Thermal Plastic Housing Noryl N190 * 5 x 5 water tight * 4 x 4 general purpose | Up to 25 amps @ 120 / 240 VAC Approvals - UL recognized |
WBA | * Whirlpool Bath designation * Single outlet direct plug * Multiple outlet configuration * Time delay, switched, level sensor option | Thermal Plastic Housing Noryl N190 | Direct Plug up to 15 amps @ 120 VAC Power Cord up to 20 amps @ 120 VAC Approvals - UL Listed Indoor use only |
